Diamond Grip strut steel safety grating for catwalk

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
YD
Model Number:
Yd-grip grating 007
Material:
stainless steel
Application:
Stair Tread, Catway Grating
Type:
perforated
width:
150mm-1220mm
Length:
1-3.5m
Thickness:
1-6mm
Certificate:
ISO 9001-2008 Certificate
Surface Treatment:
Galvanized, Powder Coating

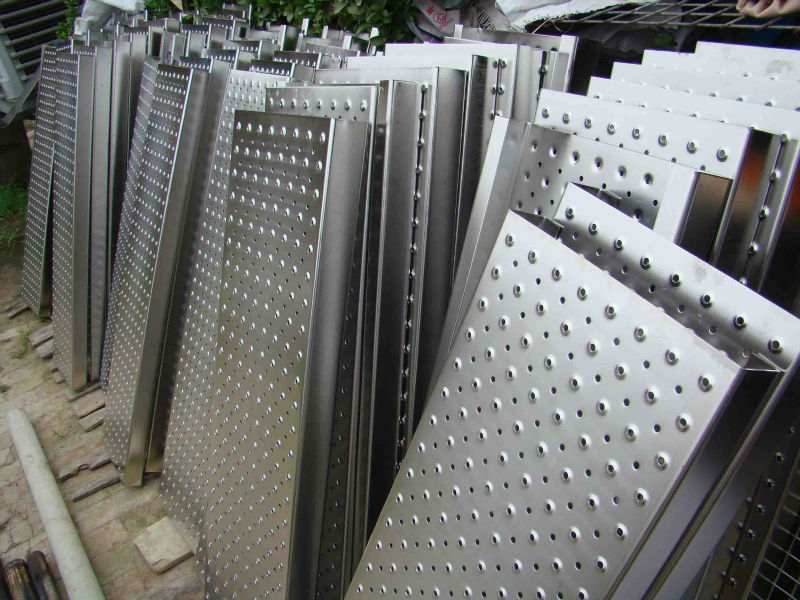

Stainless Steel Grip Strut Safty Grating

Stainless Steel

Grip Strut

Antiskid Plate



Product Description

 Specification:



Thickness:0.3mm-6.0mm
Width: 0.3m-2.4m
Length:0.3 m-6.m
Customer’s specification available



Material: Stainless steel : 201,202, 410, 304, 304L, 316, 316l etc



Iron plate, Low carbon steel plate, stainless steel plate, aluminum and aluminum alloy plate .



Surface patterns:



 Checkered plate ,embossed plate, punched hole plate.

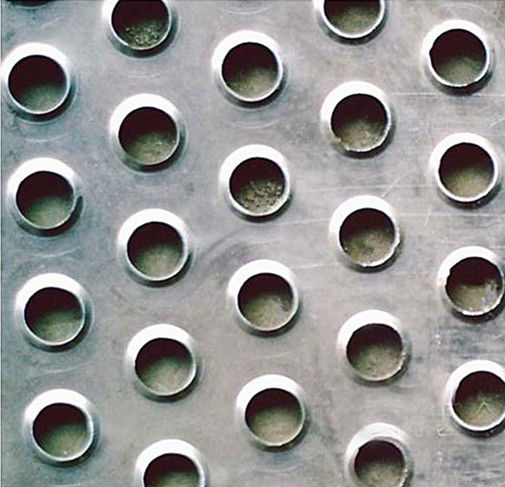

Pattern shape: ellipse hole ,round hole, raised button, raised dot, round embossed , raised herringbone, etc.








1) Steel Grating Bearing Bar (Load Bar) Specifications (mm):





The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 9 or according to customers request.



 2) Steel Grating Bearing Bar Pitch (center to center):





12.5 to 100 mm etc, also be according to client’s requirement and 30, 40, 60mm are recommended, America standard is available.





3) Steel Grating Cross Bar Pitch (center to center):





from18.5 to 101.6mm etc, also be according to client’s requirement and 50, 100mm are recommended, America standard is available.


Uses: They are mainly applied as platforms and stair treads for constructions, vessels, bridges and boilers. They are also used as reinforcement for light construction materials and concrete pouring, radiator grills on all types of vehicles and air compressors, safety guards for gear-drive equipment on various kinds of machines.
