Slotted perforated metal wire mesh plate

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Hebei, China
Material:
carbon steel, cold rolled sheet, Galvanized,Aluminum,Stainless steel
Type:
Perforated Mesh
Application:
for HVAC equipment, acoustical panels for noise control
Weave Style:
stamp punched
Technique:
Perforated
Model Number:
perforated m-014
Brand Name:
OEM
perforated sheet:
coated perforated metal
Standard:
JIS, AISI, ASTM
steel:
carbon steel, cold rolled sheet and coil, Galvanized.
stainless steel grade:
Stainless steel 304 304L, 316,316-L,409
aluminum:
Aluminum:1060/3004 H14/5052-H32/6061-T4
surface treatment:
Electro-galvanizing, Hot Dip Galvanizing,Anodizing, Coating,Painting
brass:
brass
Width:
0.914 1, 1.22, 1.25, 1.5m
Length:
1.5, 2, 2.5, 3, 4m

                                                                      Perforated metal








Hole Diameter

Staggered Centers

Sheet Thickness

Open Area

0.045"

1.14mm

0.066«

0.033-0.039"

0.84-0.99mm

37.00%

1/16"

1.59mm

3/32"

0.027-0.033"

0.68-0.84mm

41.00%

1/16"

1.59mm

1/8"

0.027-0.066"

0.68-1.68mm

23.00%

5/64"

1.98mm

1/8"

0.027-0.053"

0.68-1.35mm

35.00%

0.081"

2.06mm

1/8"

0.053-0.066"

1.35-1.68mm

38.00%

3/32"

2.38mm

5/32"

0.053-0.066"

1.35-1.68mm

33.00%

1/8"

3.17mm

3/16"

0.027-0.127"

0.68-3.23mm

40.00%

5/32"

3.97mm

3/16"

0.027-0.066"

0.68-1.68mm

63.00%

3/16"

4.76mm

1/4"

0.027-0.127"

0.68-3.23mm

50.00%

1/4"

6.35mm

3/8"

0.033-0.111", 0.25"

0.84-2.82mm, 6.35mm

40.00%

3/8"

9.52mm

1/2"

0.053-0.082", 3/16"

1.35-2.08mm, 4.76mm

51.00%

3/8"

9.52mm

9/16"

0.059", 0.119"

1.50mm, 3.02mm

40.00%

1/2"

12.70mm

11/16"

0.033-0.127", 3/16"

0.84-3.23mm, 4.76mm

48.00%

1/4" Hex

6.35mm Hex

0.285

0.027-0.033

0.68-0.84mm

76.00%

3/8" Sq.

9.52mm Sq.

Cane«

0.053-0.066"

1.35-1.68mm

51.00%




Material

carbon steel, Hot rolled sheet and coil, cold rolled sheet and coil, Galvanized.

Aluminum:1060/3004 H14/5052-H32/6061-T4.

stainless steel:304 Stainless steel,304L Stainless Steel, 316,316-L,409.

Brass, and various of nonmetal plate.


Surface Treatment

AnodizingCoatingElectro-galvanizingHot Dip GalvanizingPaintingPowder Coating.

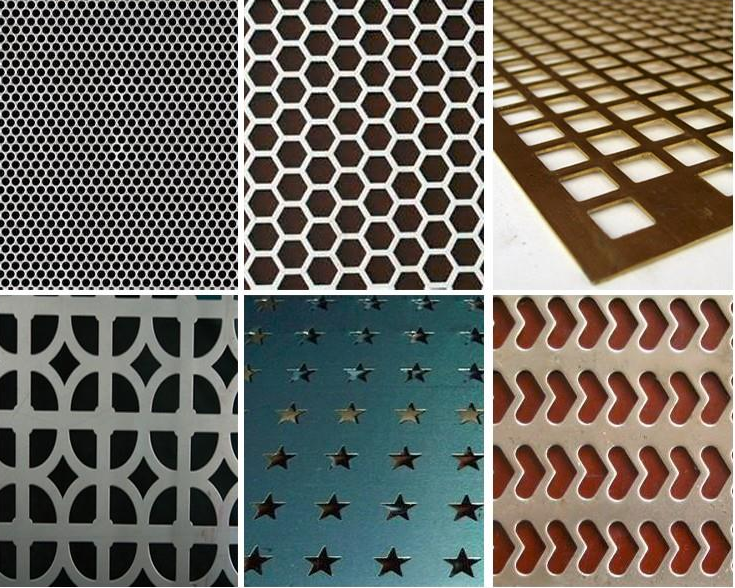

Hole Pattern

Round, Square, slotted, Hexagonal, Decorated, Rectangular, Triangle




Diamond, Cross; and other patterns according to your drawings or application requirement.



Applications


 Include air diffusers for HVAC equipment, acoustical panels for noise control,



components for water filters, and architectural elements. The uses for perforated aluminum are virtually unlimited. Also used for  Building Facades, Ceilings, Displays,  Enclosures, Fencing Panels, Fixtures, Flooring, Furniture, Grating, Guards, Infill Panels, Ladder Rungs, Partition Panels, Plant Screens, Platforms, Screens, Security Panels, Shelving, Stairways or Treads, Sunshade Panels, Walkways.










Packaging & Shipping



.on pallet with waterproof cloth

.in wooden case with waterproof paper

.in bundle with iron wire

.in bulk to container

.according to customer’s required




Company Information




Anping Yunde has a long-standing tradition of producing high quality products.

Our factory We have been manufacturer the architectural and building industry for over

20 years. During this time we have had the opportunity to work on some exciting and interesting projects.



Basic Information

Product/Service (We Sell):

perforated metal,expanded metal,aluminium

perforated sheet,aluminium expanded sheet,

grip strut plank grating

Number of Employees:

51 - 100 People



Factory Information

Factory Size (Sq.meters):

10,000-30,000 square meters

Factory Location:

Anping, Hebei, China

Number of Production Lines:

10

Number of R&D Staff:

5 - 10 People

Number of QC Staff:

5 - 10 People

Contract Manufacturing:

OEM Service Offered   Design Service Offered

Buyer Label Offered
